20 Channel 1, 5 or 10 MHz PPS Distribution Amplifier Sine or Square

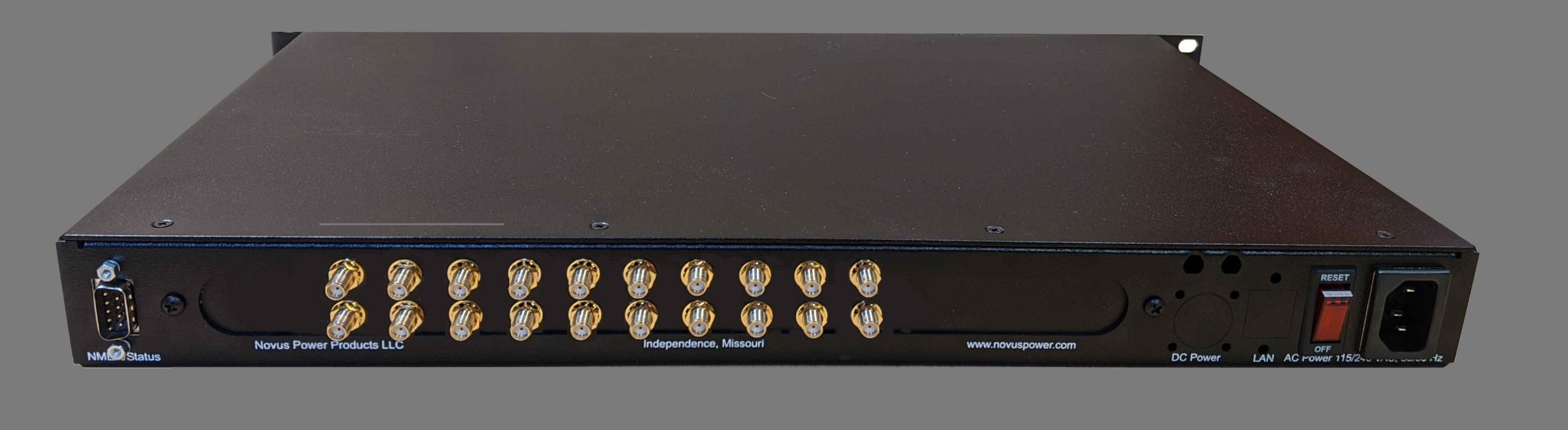

20 Channels of 1PPS Distribution in a 1RU Chassis

ND2320D-P

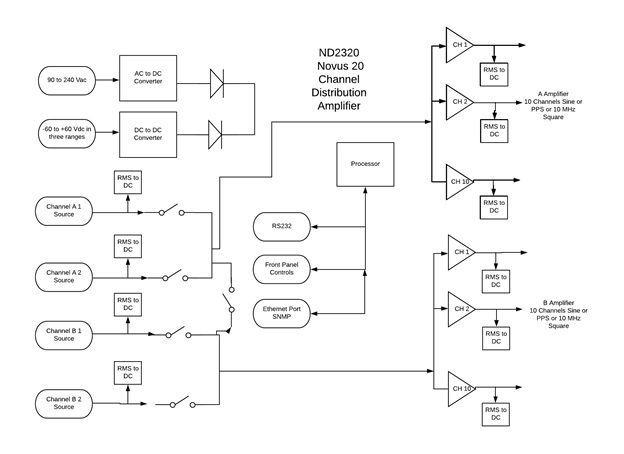

Ten channel  high performance RF distribution amplifier features less than 5 ns Skewing and low phase noise.  Product is factory configurable for 10 or 5 MHz -sine or Square or Pulse PPS. Each channel independently monitored to detect fault and/or mismatch conditions. Outputs are transient and short circuit protected. Unit accepts two inputs and automatically selects valid input. Unit measures and reports amplitude.  Two ten channel amplifiers can be mixed and matched as sine, PPS or square wave outputs.

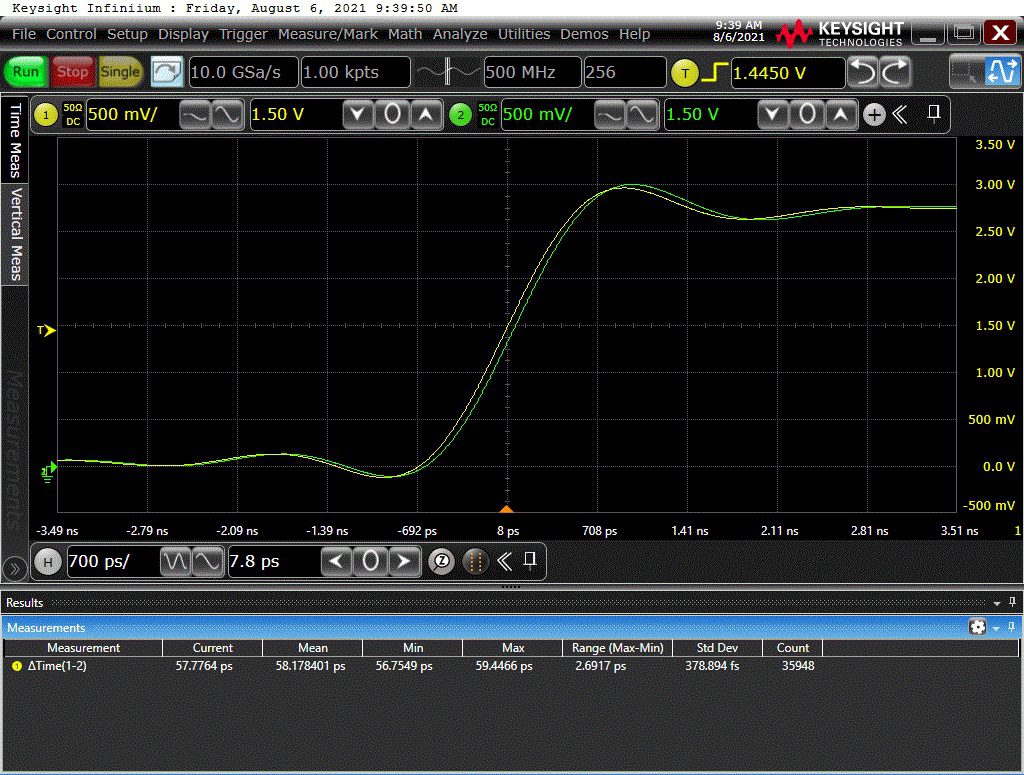

• Skewing below 200 ps (<100ps typical)

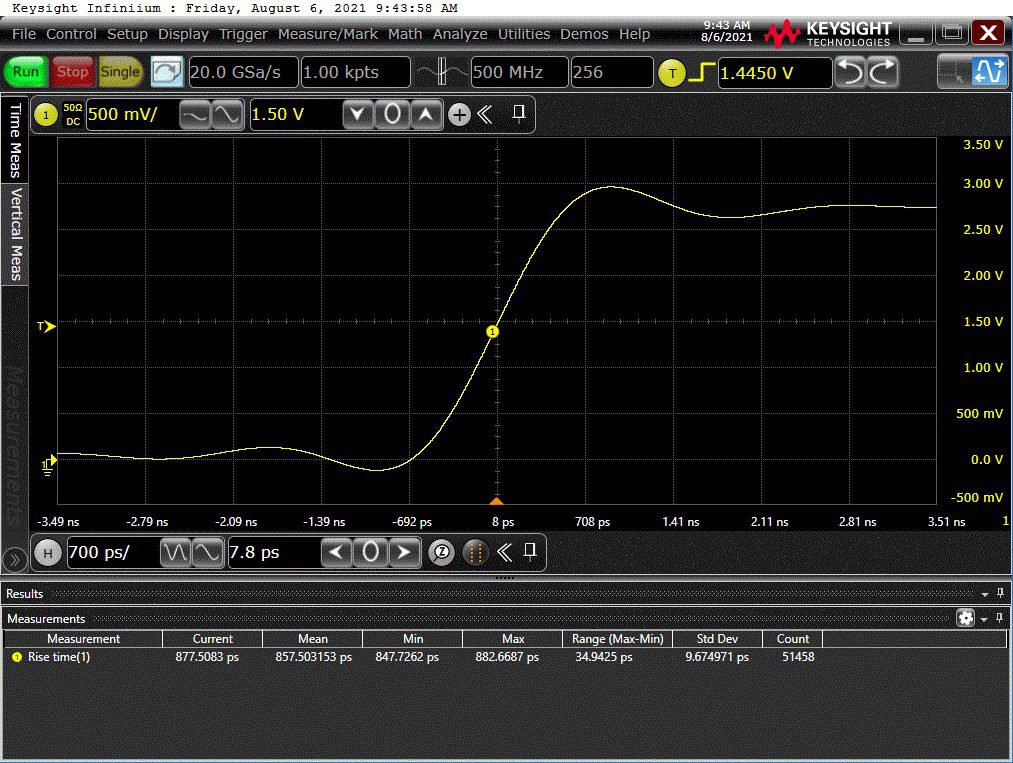

• Rise and fall times less than 1 ns
• 10, 5 or 1 MHz, PPS, square factory configurable
• Front panel amplitude display
• Internal self-test drives indicators and alert signal.
• All inputs and outputs fault and transient protected.
• Local and Remote Control  (SNMP) optional

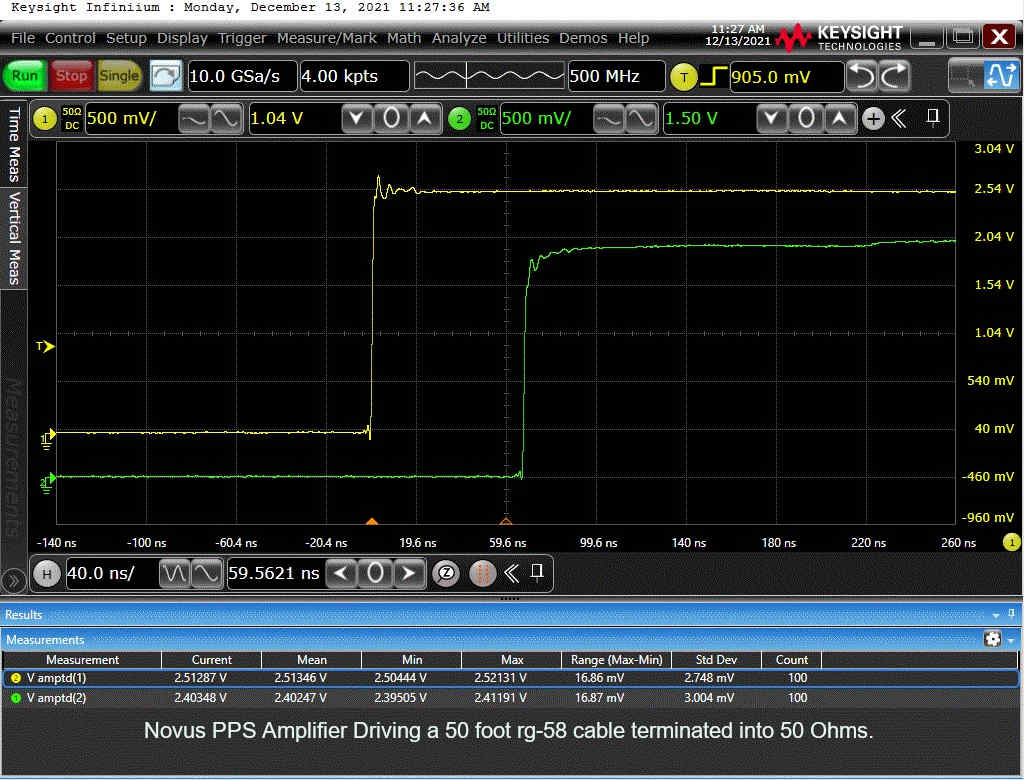

• Drives 5 or 3.3 Volt CMOS– 50 Ohm

Brand : Novus          SKU :ND2320D-P
